munk |
Posted: Fri Aug 28, 2015 5:42 pm |
|
|
Regular contributor
Joined: 16 May 2006
Posts: 62
|
sab13 wrote: lamaison wrote: Please keep us updated - Looking like I'll need to do the same upgrade very very soon!
I installed the Turbosat adapter and the new 2TB Western Digital hard disc (WD20EZRX) last night and all is working fine. It was trivial to do. There are no instructions with the Turbosat adapter but it's all pretty obvious as long as you don't miss the fact that the tiny flying power lead gets connected to the adapter board. I particularly like the fact that the disk is pretty much identical in length to the original Toppy one so the cables all fit okay without having to twist and bend too much. Also, the disk is rated for fanless low-power environments and shouldn't get too hot.
Turn on the toppy... it offers to format... and away you go. I did have a problem with MyStuff then not fully working after a fresh install but that rectified overnight once the EPG gathered some data.
I've just done the same, ordered the Turbosat SATA PATA bridge 2 days ago and it arrived today. (Made me smile on the Turbosat page when it said that the SATA-PATA bridge is the most popular item on sale at the moment on the site.)
Like you say it is very expensive 'for what it is' (~£30 inc. p&p) BUT IMO it's worth it for the simplicity of the installation - once all the previous hardware+IDE interface was removed, the installation of the new bridge and drive must have taken literally a couple of minutes (only possible minor gotcha is as you say connecting the tiny white bridge power lead up but otherwise it's fairly obvious without any instructions). The bridge is clearly engineered specifically for the Topfield and all the cables are exactly the right length to fit just perfectly.
I hooked up a spare SSD drive that was lying around (an OCZ Agility 120Gb) just to test it out, and it worked without any faffing around at all - just the usual requested "Format disk?" popup, which when completed saw the Toppy working good as new. In fact the speed of the SSD and the silence of it makes me wonder whether to just keep it in there - I probably would if it wasn't 'only' 120Gb. Is quite eery having absolutely no noise whatsoever coming out of the Toppy (the previous 10 year old drive made a right racket!).
My final choice of HDD for this Toppy is similar to yours above - a WD Green 1TB HDD (WD10EZRX). Fingers crossed this will work fine, I did try and trawl through a good portion of both this thread and the 'compatible HDD' drives thread and saw a few ppl have had it work fine so ... we shall see.
Thanks to everyone that's contributed to this thread (and the compatible HDD thread). Nice to know there are others still keeping their Toppys alive - dreading the day when it can't go on any longer, there still doesn't seem to be any ideal substitute for the Toppy.  |
_________________ TF5800, TS On, F/W: MS6 Recommended F/W 12/9/2009 -Sy
TAPs: EPG2MEI v0.96; MyStuff 6.6; Font Manager 1.0d; Extend v1.7; SecCache (UK) v0.4; EIT Sub (Game) v0.6; MHEG On/Off A3; MyInfo B5.6; PruneEPG 1.0;
Sig generated by MyInfo on 14/8/15 |
|
Back to top |
|
andyfras |
Posted: Wed Oct 14, 2015 12:33 pm |
|
|
Frequent contributor
Joined: 25 Jul 2005
Posts: 3457
|
There seems to be some sort of Turbosat offshoot called Pulsat (very similar website) who are offering the same adapter a few pounds cheaper:
http://www.pulsat.com/products/Bridge-Module-PATA-to-SATA.html
Postage is slightly higher though. |
_________________ Toppy PSU repair service or capacitor kits for DIY available - PM me for details.
MyStuff 6.6 : Little Clock : MHEGOnOff : Extend : EPG2MEI : SecCache : EIT_Sub : TSSaver : Prune EPG
Channel Organiser : Tap Commander : HDD Info : PCControl : Signal Monitor : MyInfo
URC-7555 remote: TF5800 320GB 2.5", Recommended_5800.tfd + CfPePsScUUuWfZ |
|
Back to top |
|
granville23 |
Posted: Mon Dec 14, 2015 4:29 pm |
|
|
Joined: 08 Apr 2012
Posts: 4
Location: Bedfordshire
|
Hi, can anyone tell me how long it should take to format a 1 TB Western-Digital-WD10EZRX, as I have installed one with a recomended sata adapter and displaying on screen is " format progressing" which has been there now for 2hrs 30 mins, has this froze or is it still formatting.
Thanks in advance
G |
_________________ granville |
|
Back to top |
|
andyfras |
Posted: Mon Dec 14, 2015 4:50 pm |
|
|
Frequent contributor
Joined: 25 Jul 2005
Posts: 3457
|
It should take a few minutes or less.
Have you connected the IDE lead backwards (as required by the Toppy)? |
_________________ Toppy PSU repair service or capacitor kits for DIY available - PM me for details.
MyStuff 6.6 : Little Clock : MHEGOnOff : Extend : EPG2MEI : SecCache : EIT_Sub : TSSaver : Prune EPG
Channel Organiser : Tap Commander : HDD Info : PCControl : Signal Monitor : MyInfo
URC-7555 remote: TF5800 320GB 2.5", Recommended_5800.tfd + CfPePsScUUuWfZ |
|
Back to top |
|
granville23 |
Posted: Mon Dec 14, 2015 4:57 pm |
|
|
Joined: 08 Apr 2012
Posts: 4
Location: Bedfordshire
|
Hi Andy,
I am using the same lead at the moment just to see if it is working properly, or is that wrong |
_________________ granville |
|
Back to top |
|
granville23 |
Posted: Mon Dec 14, 2015 5:02 pm |
|
|
Joined: 08 Apr 2012
Posts: 4
Location: Bedfordshire
|
Ah would it work with the original lead backwards and I have put jumper on pins 5 and 6 which I think you mentioned in one of you posts |
_________________ granville |
|
Back to top |
|
andyfras |
Posted: Mon Dec 14, 2015 5:08 pm |
|
|
Frequent contributor
Joined: 25 Jul 2005
Posts: 3457
|
I don't know if it works with the original lead; I've never managed to make it stretch that far. I suggest that you use the recommended reversed 80 wire IDE cable. You can get one for less than £2 on eBay.
http://www.ebay.co.uk/itm/271521227122
Reversing the original lead would have no effect, as it doesn't have the intermediate earth wires that the 80 wire lead has. |
_________________ Toppy PSU repair service or capacitor kits for DIY available - PM me for details.
MyStuff 6.6 : Little Clock : MHEGOnOff : Extend : EPG2MEI : SecCache : EIT_Sub : TSSaver : Prune EPG
Channel Organiser : Tap Commander : HDD Info : PCControl : Signal Monitor : MyInfo
URC-7555 remote: TF5800 320GB 2.5", Recommended_5800.tfd + CfPePsScUUuWfZ |
|
Back to top |
|
granville23 |
Posted: Mon Dec 14, 2015 5:21 pm |
|
|
Joined: 08 Apr 2012
Posts: 4
Location: Bedfordshire
|
Ok I will give that a go then, thanks |
_________________ granville |
|
Back to top |
|
andyfras |
Posted: Fri Apr 15, 2016 9:43 pm |
|
|
Frequent contributor
Joined: 25 Jul 2005
Posts: 3457
|

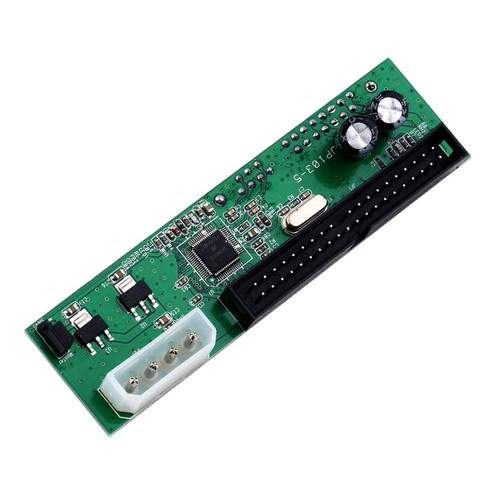

I've been asked what SATA adapter I'm currently supplying. It's this one, which I get from China, but beware that there are several similar looking ones that aren't totally compatible with the Toppy (I've got a box full of non-compatible ones that I've tried).

|
_________________ Toppy PSU repair service or capacitor kits for DIY available - PM me for details.
MyStuff 6.6 : Little Clock : MHEGOnOff : Extend : EPG2MEI : SecCache : EIT_Sub : TSSaver : Prune EPG
Channel Organiser : Tap Commander : HDD Info : PCControl : Signal Monitor : MyInfo
URC-7555 remote: TF5800 320GB 2.5", Recommended_5800.tfd + CfPePsScUUuWfZ |
|
Back to top |
|
mstombs |
Posted: Fri Apr 15, 2016 11:30 pm |
|
|
Frequent contributor
Joined: 31 Dec 2006
Posts: 938
|
|
Back to top |
TF5800
|
Bizman |
Posted: Sat Apr 16, 2016 7:56 am |
|
|
Frequent contributor
Joined: 06 Apr 2010
Posts: 1707
|
mstombs wrote: How on earth can someone make this and ship to UK (By train via Russia?) for so little... Perhaps it fell off a lorry.  |
_________________ TF5810, F/W: 5.15.09T 4/9/2009 -FmTe+EzHsVb
TAPs: EIT Sub (Game) v0.6; SecCache (UK) v0.4; MHEG On/Off A3; MPDisplayLITE V1.2; MyInfo B5.6; PruneEPG 1.0; EPG2MEI v0.96; QuickJump 1.72; Extend v1.7; (fsSave 1.1);
Sig generated by MyInfo on 3/8/17
Other TAPs : FsCheck, Channel Organiser. PSU Caps 7/2/2011 Tx: Mendip. TV: Samsung (32"), NSLU2, STB: Labgear FV300. PC Acer Aspire One with Win7 Starter |
|
Back to top |
|
Martin_Edney |
Posted: Sun Jun 26, 2016 8:24 pm |
|
|
Joined: 05 Nov 2008
Posts: 3
|
I replaced the hard disk in my Topfield 5800 about a month ago. I'm using a Startech IDE2SAT2 and all is working well.
http://www.kikatek.com/P337011/IDE2SAT2-StarTech-40-Pin-IDE-PATA-to-SATA
In spite of advice to replace the original IDE cable because it's too short when used with an IDE to SATA adapter such as the Startech, I found that judicious adjustment of the position of the hard disk meant I could reuse the original IDE cable.
The new SATA hard disk I'm using is a Western Digital AV-GP 2TB
http://www.kikatek.com/P329897/WD20EURX-WD-AV-GP-2TB-SATA-III-64MB-3-5-inch-Hard
It was initialised and working within a couple of minutes of the Topfield being switched on.
I also replaced my power supply at the same time, thanks to andyfras' exchange service.
All has been working well for about a month now. |
|
|
Back to top |
|
andyfras |
Posted: Fri Jul 21, 2017 6:17 pm |
|
|
Frequent contributor
Joined: 25 Jul 2005
Posts: 3457
|
Turbosat have reduced the price on their adapter to £14.95 delivered:
http://www.ebay.co.uk/itm/263088112941 |
_________________ Toppy PSU repair service or capacitor kits for DIY available - PM me for details.
MyStuff 6.6 : Little Clock : MHEGOnOff : Extend : EPG2MEI : SecCache : EIT_Sub : TSSaver : Prune EPG
Channel Organiser : Tap Commander : HDD Info : PCControl : Signal Monitor : MyInfo
URC-7555 remote: TF5800 320GB 2.5", Recommended_5800.tfd + CfPePsScUUuWfZ |
|
Back to top |
|
YorkshireJumbo |
Posted: Sat Jul 22, 2017 10:12 am |
|
|
Frequent contributor
Joined: 16 Sep 2005
Posts: 788
|
Does that mean that they're selling off the last ones, or do they feel they're overpriced? I'm certainly happy with mine that I bought a coupe of years ago... |
_________________ YJ - You may have speed, but I have momentum
Black Panther since Sep '05, Caps replaced July '10
WD10EZRX and Turbosat adaptor added May '16
Noiseblocker XR1 fan added Mar '18
F/W: MS6 Recommended F/W 12/9/2009 -Sy+U+Uu
TAPs: MS 6.6 Suite, UK OZ Surfer |
|
Back to top |
|
andyfras |
Posted: Sat Jul 22, 2017 10:57 am |
|
|
Frequent contributor
Joined: 25 Jul 2005
Posts: 3457
|
They had 8 left yesterday, so I suspect that they are selling the last ones and won't be reordering.
IMHO this is the price that they should have been to start with. |
